Beltane Stoves
Chew EcoDesign
Chew EcoDesign
Couldn't load pickup availability
SPECIFICATIONS
|
Height |
606 |
|
Width |
490 |
|
Depth |
320 |
|
Weight |
70kg |
|
Nominal Output |
4.6kW |
|
Efficiency |
W 80% C 83.1% |
|
CO @ 13% |
W 0.05 C 0.08 |
|
Particulates mg/mo3 @13% |
W 36 C 11 |
|
Maximum log length |
30cm |
|
Distance combustible materials rear |
150mm |
|
Distance combustible materials side |
500mm |
|
Distance to centre of top flue outlet from back of stove |
130mm |
|
Height to centre of rear outlet |
520mm |
|
Colour |
Anthracite |
|
Optional closed combustion |
No |
|
Smoke Control |
Yes |
|
Suitable for glass floor plate |
YES |
|
En |
13240 |
DESCRIPTION

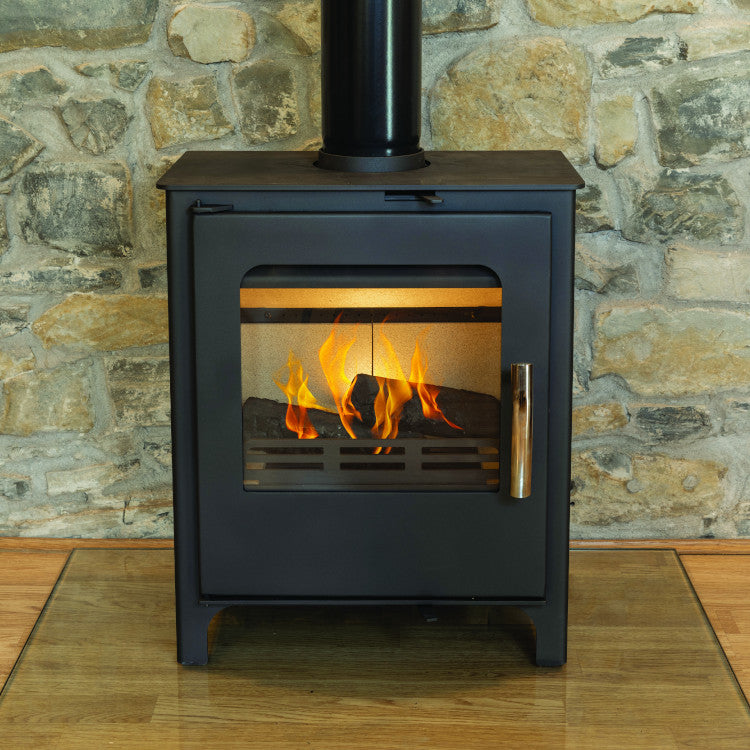

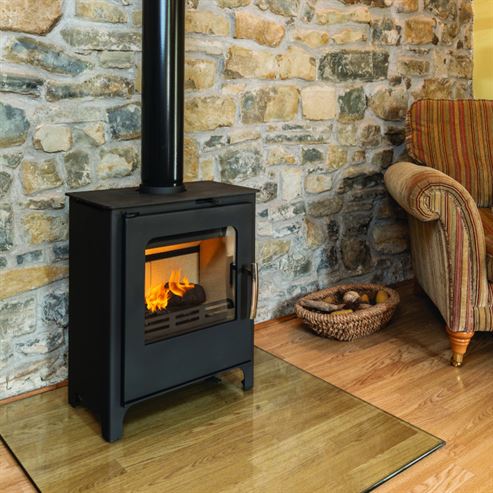

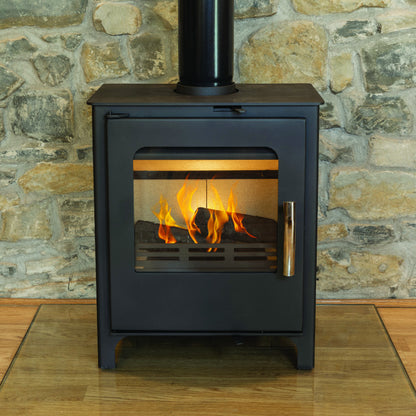

The Chew woodburning stove from Beltane Stoves, the big brother to its counterpart, the Brue. With larger dimensions, increased output, and the ability to burn logs up to 35cm long, the Chew is designed to make a bold statement in any space.
Featuring an upgraded, larger glass window, the Chew offers an even more mesmerising fire view, allowing you to immerse yourself in the captivating dance of the flames. Its sleek and clean lines make it a timeless addition to your home, whether freestanding or set into an existing fireplace.
Designed for larger spaces, the Chew delivers impressive heat output, ranging from 4 to 6kW, ensuring a warm and comfortable environment even in spacious rooms. With easy-to-use air controls, you have full control over the burn rate, allowing for efficient and customizable heat distribution.
The Chew is lined with vermiculite, a natural material known for its excellent insulation properties, enhancing the stove's performance and maximising heat retention. Equipped with a durable cast iron grate, this stove is built to withstand the rigours of regular use, ensuring long-lasting reliability and efficient combustion.
Proudly designed in Britain, the Chew exemplifies exceptional craftsmanship and attention to detail. The stove is suitable for installation on a 12mm glass floorplate, providing a stylish and modern aesthetic while meeting safety requirements.
With an A+ energy rating, the Chew is designed to operate with high efficiency, reducing both fuel consumption and environmental impact. Defra approval ensures that the Chew meets stringent air quality standards, allowing for clean and eco-friendly wood burning in smoke control areas.
ENERGY RATING: Product Fiche
The Beltane Chew is Eco-design compliant. Eco-design is a European-wide programme to lower emissions, which came into force in the UK in 2022—setting the standard for environmentally friendly stoves.
DOWNLOADS
BELTANE CHEW ECODESIGN PRODUCT FICHE
BELTANE CHEW ECODESIGN ENERGY RATING

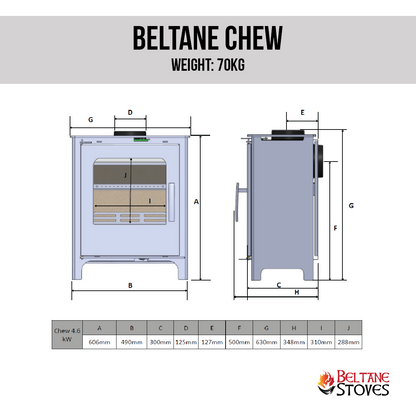

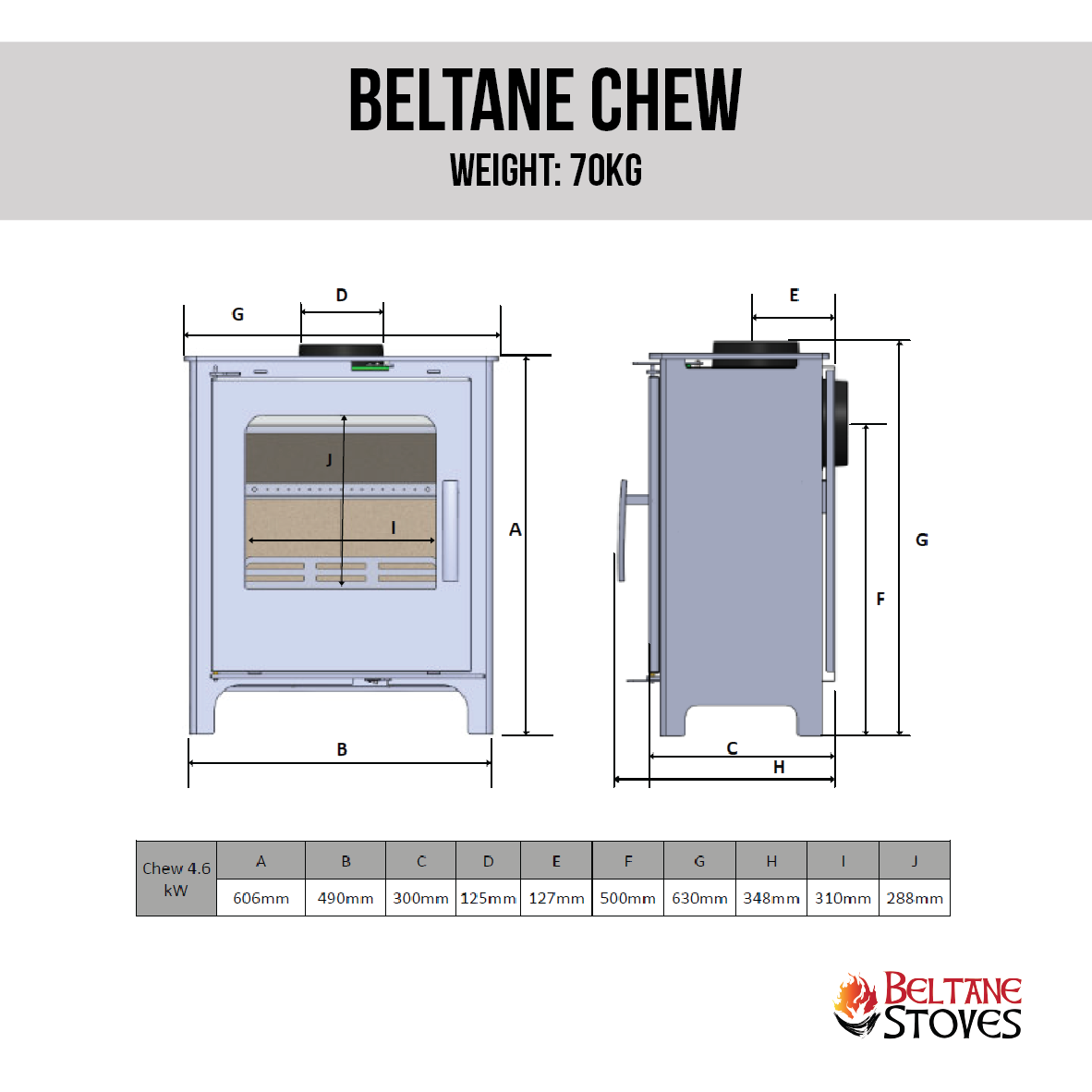

BELTANE CHEW ECODESIGN DIMENSIONS
BELTANE CHEW ECODESIGN INSTALLATION AND OPERATING INSTRUCTIONS
